uLib::StructuredGrid Class Reference

#include <Math/StructuredGrid.h>

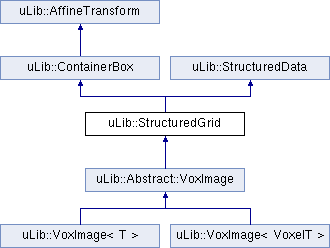

Inheritance diagram for uLib::StructuredGrid:
uLib::ContainerBox uLib::StructuredData uLib::AffineTransform uLib::Abstract::VoxImage uLib::VoxImage< T > uLib::VoxImage< VoxelT >

Public Member Functions

 StructuredGrid (const Vector3i &size)

void SetSpacing (const Vector3f &spacing)

Vector3f GetSpacing () const

bool IsInsideBounds (const Vector4f &pt) const

Vector3i Find (const HPoint3f &pt) const

void PrintSelf (std::ostream &o)

- Public Member Functions inherited from uLib::ContainerBox
 ContainerBox ()

 ContainerBox (const ContainerBox &copy)

void SetOrigin (const Vector3f &v)

Vector3f GetOrigin () const

void SetSize (const Vector3f &v)

Vector3f GetSize () const

void FlipLocalAxes (int first, int second)

Matrix4f GetWorldMatrix () const

Vector4f GetWorldPoint (const Vector4f &v) const

Vector4f GetWorldPoint (const float x, const float y, const float z)

Vector4f GetLocalPoint (const Vector4f &v) const

Vector4f GetLocalPoint (const float x, const float y, const float z)

- Public Member Functions inherited from uLib::AffineTransform
 AffineTransform ()

 AffineTransform (AffineTransform *parent)

 AffineTransform (const AffineTransform &copy)

Eigen::Affine3f & GetTransform ()

AffineTransform * GetParent () const

void SetParent (AffineTransform *name)

void SetMatrix (Matrix4f &mat)

Matrix4f & GetMatrix ()

Matrix4f GetWorldMatrix () const

void SetPosition (const Vector3f &v)

Vector3f GetPosition () const

void SetRotation (const Matrix3f &m)

Matrix3f GetRotation () const

void Translate (const Vector3f &v)

void Scale (const Vector3f &v)

Vector3f GetScale () const

void Rotate (const Matrix3f &m)

void PreRotate (const Matrix3f &m)

void QuaternionRotate (const Vector4f &q)

void EulerYZYRotate (const Vector3f &e)

void FlipAxes (int first, int second)

- Public Member Functions inherited from uLib::StructuredData
 StructuredData (const Vector3i &size)

 StructuredData (const StructuredData &copy)

Vector3i GetDims () const

void SetDims (const Vector3i &size)

Vector3i GetIncrements () const

void SetIncrements (Vector3i name)

void SetDataOrder (Order order=YXZ)

Order GetDataOrder () const

bool IsInsideGrid (const Vector3i &v) const

int Map (Vector3i index) const

Vector3i UnMap (int index) const


Additional Inherited Members

- Public Types inherited from uLib::StructuredData
enum  _Order {
  CustomOrder = 0, XYZ = 0 | 1 << 2 | 2 << 4, XZY = 0 | 2 << 2 | 1 << 4, YXZ = 1 | 0 << 2 | 2 << 4,
  YZX = 2 | 0 << 2 | 1 << 4, ZXY = 1 | 2 << 2 | 0 << 4, ZYX = 2 | 1 << 2 | 0 << 4
}

typedef enum _Order Order

- Protected Attributes inherited from uLib::AffineTransform
Eigen::Affine3f m_T

AffineTransform * m_Parent


Constructor & Destructor Documentation

uLib::StructuredGrid::StructuredGrid ( const Vector3i &  size)

Member Function Documentation

Vector3i uLib::StructuredGrid::Find ( const HPoint3f &  pt) const
Vector3f uLib::StructuredGrid::GetSpacing ( ) const
inline
bool uLib::StructuredGrid::IsInsideBounds ( const Vector4f &  pt) const
void uLib::StructuredGrid::PrintSelf ( std::ostream &  o)
void uLib::StructuredGrid::SetSpacing ( const Vector3f &  spacing)
inline
The documentation for this class was generated from the following file:
